- MultiScape100
The proven workhorse for Earth observation
Consistently delivering high-quality, application-ready data, on time and within budget.
Key features
4.75 m
19.4 km
8-Bands
In the VNIR Range
1.5U
Volume
4096 Pixels
Across Track
32 dTDI
Stages Per Band
Technical specifications
Detailed technical specifications for the MultiScape100 imaging system.
Focal length
580 mm
Aperture
95 mm
Full field of view
2.22° (across-track)
Configuration
Pushbroom
Sensor technology
CMOS global shutter
Resolution
4096 pixels
Pixel size
5.5 µm
Pixel depth
12 bit
Spectral filter
- 1 Panchromatic band (500 nm to 750 nm)
- 8 Band VNIR (450 nm to 900 nm)
Digital TDI capabilities
1 to 32 stages, set individually per band
Image reduction
- Binning of RAW data
- CCSDS 122.0-B-2 Lossy/Lossless (optional)
Image preview
Thumbnailing
Control interface options
- I²C
- SPI
- RS-422
- SpaceWire (ECSS-E-ST-50-12C)
Data interface options
- LVDS
- SpaceWire (ECSS-E-ST-50-12C)
Power supply
5VDC (±5%), 1.8A
Power consumption
- 650 mA, 3.25 W – Idle Mode
- 1 400 mA, 7.00 W – Imaging Mode
Volume
176.5 mm x 98.3 mm x 98.3 mm
Mass
1.26 (±5%) kg
Operating temperature
-10°C to +50°C
Radiation
Fully functional to 15 kRad
Related products
RGB Snapshot or Video
TriScape100
The TriScape100 offers near real-time Earth observation with HD-video capabilities in the visible spectrum at an exceptional resolution.
32 VNIR Spectral Bands

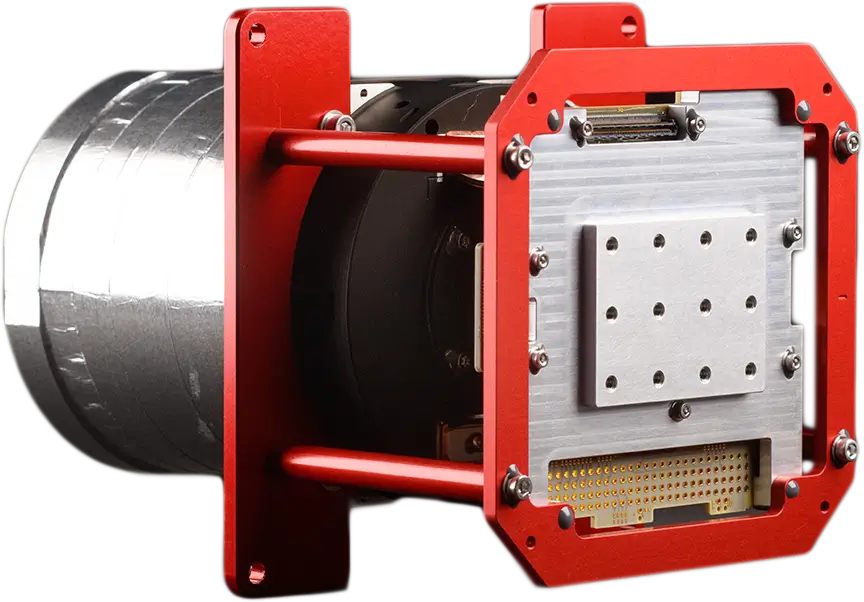

HyperScape100
