HyperScape100
The HyperScape100 is pushing boundaries with an unprecedented leap in optical payload technology. Covering the visible and near-IR spectral range in 32 bands at a bandwidth of 4% of the central wavelength at below 5 m GSD.

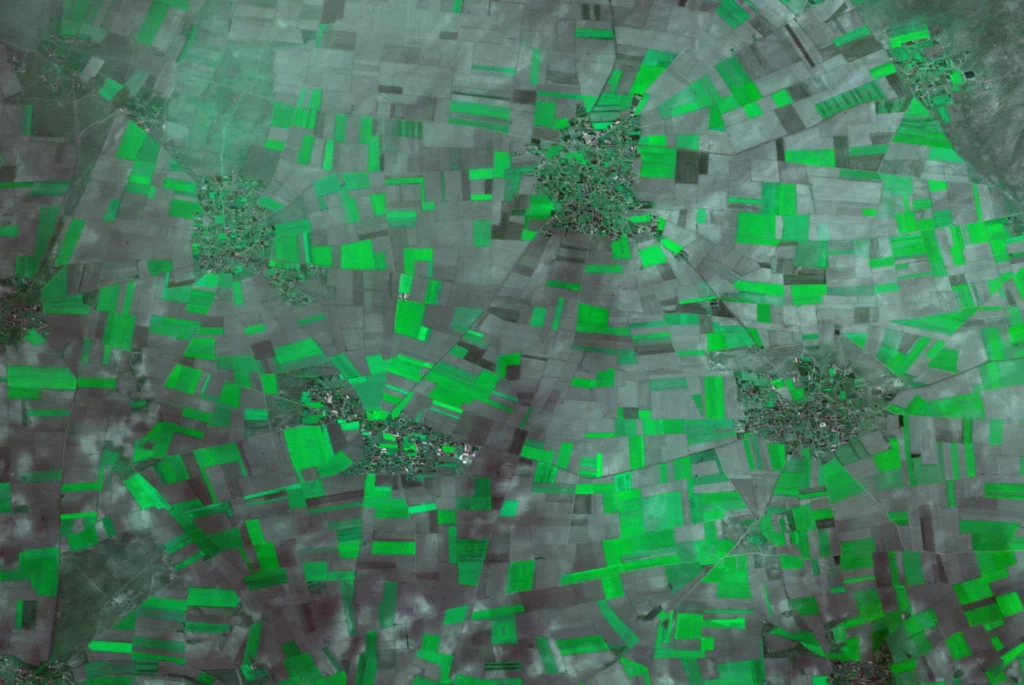

Seeing spectral detail in every pixel.
The HyperScape100 is engineered to bring hyperspectral capabilities to nanosatellites. This imager is based on a 12.6-megapixel image sensor and a continuous variable filter in the visible and near-infrared (VNIR) spectral range. The Hyperscape100 provides continuous line-scan imaging in up to 32 bands, each with digital time delay integration (TDI).
4.75 m GSD
at 500 km orbit height
19.4 km swath
at 500 km orbit height
32 bands
in the VNIR spectrum
20 nm to 32 nm
spectral bandwidth
500 – 800 nm
spectral range
4096 pixels
in the cross track
Download the HyperScape100 datasheet here:
HyperScape100 Product Specifications
| OPTICS | |
|---|---|
| Focal Length | 580 mm ±1 mm |
| Aperture Diameter | 95 mm |
| Full Field of View | 2.22° (across track) |
| IMAGING | |
| Configuration | Line-scan (Push broom) |
| Sensor Technology | CMOS |
| Effective Pixels | 4096 pixels |
| Pixel Size | 5.5 μm |
| Pixel Depth | 10-bit |
| Spectral Bands | Up to 32 bands |
| Digital TDI Stages | Up to 32 per band (user assigned) |
| Line Rate | Up to 2600 Hz (1) |
| Spectral Range | 487 nm – 790 nm (Filter option 1) 502 nm – 801 nm (Filter option 2) 516 nm – 810 nm (Filter option 3) |
| Spectral Bandwidth (FWHM) | ± 4% of the central wavelength |
| Transmittance | 51% (at 550 nm) (2) |
| ON-BOARD ELECTRONICS | |
| Storage Capacity | 128 Gigabyte NAND Flash |
| Continuous Strip Length | Up to 800 km |
| Image Processing | Binning Thumbnails |
| Image Compression | CCSDS 122.0 Lossy and Lossless (Optional) |
| Control Interface | I2C or SPI CAN 2.0-B, RS-422 (Optional) |
| Data Interface | LVDS SpaceWire (Optional) |
| Power Supply | 5 V DC |
| Power Consumption | < 6W (During imaging mode) |
| MECHANICAL | |
| Mass | 1.2 kg |
| Dimensions | 98 x 98 x 176 mm |
| ENVIRONMENTAL | |
| Operating Temperature | -10°C to +50°C |
| Radiation (TID) | > 15 krad |
(1) Dependant on the orbital height.
(2) Including the filter.
(3) At 500 km orbit height.
