HyperScape100
The HyperScape100 covers the visible and near-IR spectral range in up to 32 bands at an unprecedented spatial resolution and form factor.
The HyperScape100 is pushing the boundaries for CubeSats with an unprecedented hyperspectral imaging leap.
4.75 m
GSD at 500 km
19.4 km
SWATH at 500 km
32-Bands
From 400 Bands
1.5U
Volume
460–860
Spectral Range (nm)
8dTDI
Stages Per Band
Downloads
HyperScape100 Specifications
- Optics
| Focal Length | 580 mm |
| Aperture | 95 mm |
| Full Field of View | 2.22° (across-track) |
- Imaging
| Configuration | Pushbroom |
| Sensor Technology | CMOS Global Shutter |
| Resolution | 4096 pixels |
| Pixel Size | 5.5 µm |
| Pixel Depth | 12 bit |
| Spectral Filter |
|
| FWHM Bandwidth | 3.5% of Central Wavelength |
| Digital TDI Capabilities | 1 to 8 stages, set individually per band |
- On-Board Electronics
| Storage Capacity | 128 Gigabyte EDAC-protected NAND Flash |
| Image Reduction |
|
| Image Preview | Thumbnailing |
| Control Interface Options |
|
| Data Interface Options |
|
| Power Supply | 5VDC (±5%), 1.8A |
| Power Consumption |
|
- Mechanical
| Volume | 176.5 mm x 98.3 mm x 98.3 mm |
| Mass | 1.26 (±5%) kg |
- Environmental
| Operating Temperature | -10°C to +50°C |
| Radiation (TID) | Fully functional to 15 kRad |
Related products
8 VNIR Spectral Bands
MultiScape100
The digital TDI enabled MultiScape100 CIS to achieve greater pixel depth in seven spectral bands, which is useful for advanced Earth observation applications.
RGB Snapshot or Video

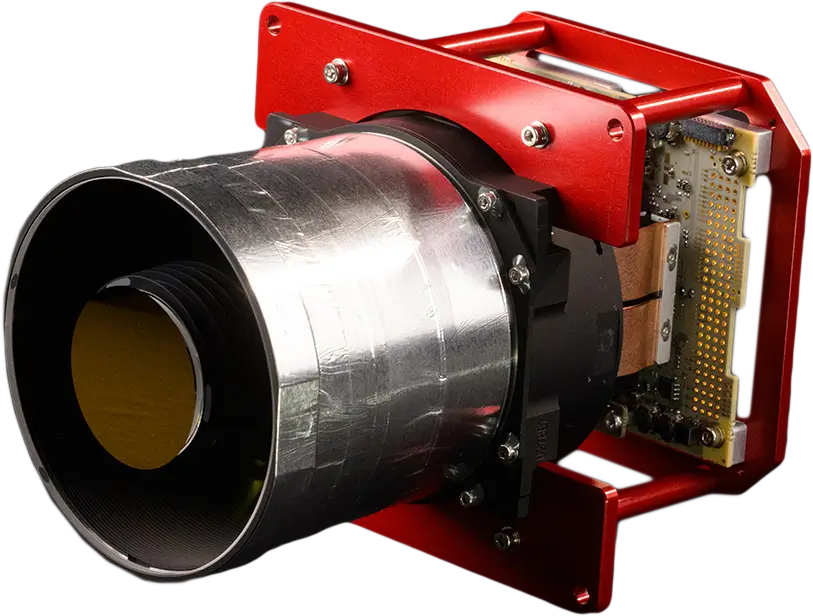

TriScape100
