Natural disasters are becoming more frequent, more severe, and more costly. Wildfires are spreading across larger areas, storms are increasing in intensity, floods are affecting wider regions, and drought conditions are placing growing pressure on communities and critical infrastructure. For emergency responders, government agencies, insurers, and humanitarian organisations, the challenge is rarely a lack of information. The challenge is obtaining reliable, actionable intelligence quickly enough to support decisions when time is limited.
Satellite imagery has become an indispensable tool for disaster management, but not all imaging systems are equally suited to operational response. Emergency managers need imagery that can rapidly identify affected areas, monitor changing conditions, assess damage, and support recovery efforts. The MultiScape100 delivers exactly this capability by combining high-resolution RGB imagery with carefully selected multispectral bands, including red-edge and near-infrared wavelengths, in a compact payload capable of delivering 4.75 m GSD imagery from a satellite as small as a 6U CubeSat.
From wildfire monitoring and flood mapping to infrastructure assessment and disaster recovery, multispectral imaging provides the situational awareness needed to turn observations into action, often delivering actionable intelligence within 24 hours of image acquisition and enabling faster, more confident decision-making when every hour counts.
Why multispectral imaging is the right tool for disaster response
Disaster management is fundamentally about detecting change. Responders need to know where water has spread, where vegetation has burned, where infrastructure has been damaged, and how conditions are evolving over time.
Multispectral imaging is particularly effective because it combines the intuitive interpretation of RGB imagery with the analytical power of non-visible spectral bands. While RGB imagery shows responders what the scene looks like, near-infrared and red-edge observations reveal information that may not yet be visible to the human eye.
Healthy vegetation strongly reflects near-infrared light, while stressed or burned vegetation reflects significantly less. Water absorbs near-infrared wavelengths, making floodwaters easier to distinguish from surrounding land. These spectral characteristics enable rapid identification of affected areas and allow responders to quantify damage with greater confidence than visual imagery alone.
Unlike hyperspectral systems that prioritise detailed spectral analysis, multispectral systems focus on a small number of carefully selected bands that have proven operational value. This reduces data volumes, simplifies processing, and enables faster delivery of actionable information to decision-makers.
RGB imagery shows the disaster. Multispectral imagery reveals its impact.
RGB imagery remains one of the most valuable tools available to emergency responders. It provides intuitive, high-resolution visual information that allows analysts to identify damaged infrastructure, flooded roads, wildfire perimeters, and affected communities. In many situations, an RGB image can quickly answer the question: What happened?
However, visual imagery alone cannot always reveal the full extent of a disaster’s impact.
Multispectral imaging extends observations beyond the visible spectrum by incorporating wavelengths such as Red Edge and Near-Infrared (NIR), which are highly sensitive to vegetation condition, moisture content, and environmental change. These additional bands allow analysts to move beyond visual interpretation and quantify impacts that may not yet be visible to the human eye.
For example, after a wildfire, RGB imagery can clearly show burned areas, while near-infrared and shortwave-infrared observations are widely used to derive burn severity indices such as the Normalized Burn Ratio (NBR), enabling accurate and rapid classification of burn severity zones, often with validation accuracies exceeding 90%.
Following a flood, RGB imagery reveals where water is visible on the surface, whereas NIR measurements enable flood extent mapping in under 24 hours with classification accuracy often exceeding 90%, improving the identification of affected communities and infrastructure.
In drought conditions, vegetation can continue to appear green in RGB imagery even as plant stress develops; red-edge and near-infrared observations can detect physiological stress days to weeks before visible symptoms, with studies demonstrating early detection 1–2 weeks ahead of traditional indices or visual assessment.
This combination of visual context and spectral intelligence is what makes multispectral imaging particularly valuable for disaster management. Responders can not only see where an event has occurred, but also measure its severity, track its progression, and prioritise areas requiring immediate attention.
The MultiScape100 combines high-resolution RGB imagery with dedicated Red Edge and Near-Infrared bands in a single payload, providing both the visual clarity needed for rapid situational awareness and the spectral information required for informed decision-making throughout the disaster response cycle.

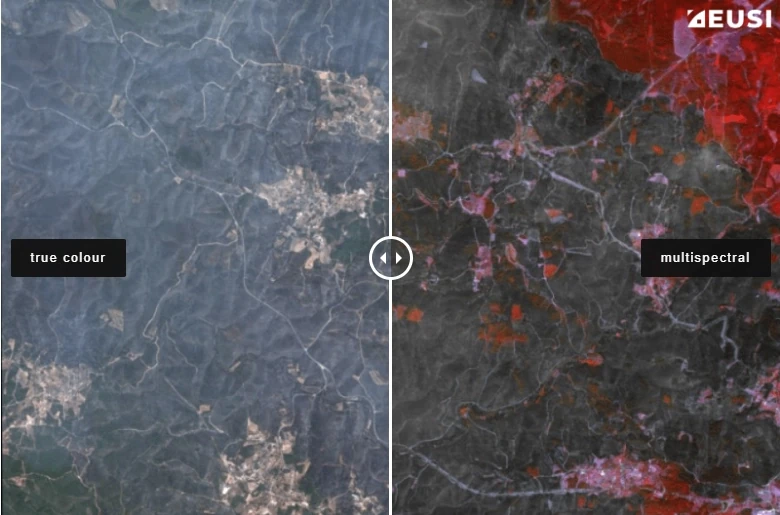

Image: European Space Imaging, True colour vs false colour (multispectral) satellite image of an area within wildfire. In the multispectral image, red denotes healthy vegetation while the black/grey areas are burnt vegetation.

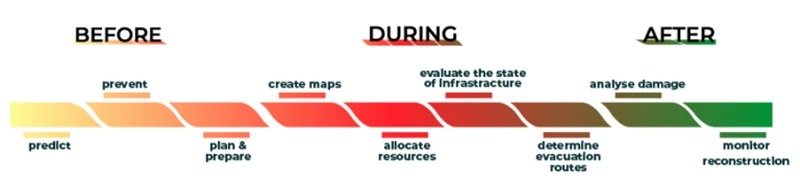

Disaster monitoring across the entire response cycle
The value of multispectral imaging extends beyond disaster response itself. By monitoring environmental conditions before, during, and after an event, organisations can improve preparedness, accelerate response efforts, and support long-term recovery planning.
Phase 1: Preparedness and Risk Assessment
What you monitor:
- Vegetation health and fuel loads
- Drought development
- Flood-prone regions
- Critical infrastructure corridors
- Coastal erosion and shoreline change
Multispectral imagery enables agencies to identify areas that may be vulnerable before disaster strikes. Vegetation indices derived from red and near-infrared bands can reveal declining plant health and increasing wildfire risk. Long-term monitoring of river basins and wetlands can identify regions susceptible to flooding, while repeated observations of coastlines can highlight areas experiencing accelerated erosion.
Output:
Risk maps that help prioritise mitigation efforts, allocate resources, and improve disaster preparedness planning.
Phase 2: Event Detection and Situational Awareness
What you monitor:
- Flood extent
- Wildfire perimeters
- Landslides
- Storm damage
- Infrastructure disruptions
During an active disaster, situational awareness becomes critical. Emergency managers need to understand where the event is occurring, how rapidly conditions are changing, and which communities or assets are affected.
RGB imagery provides immediate visual context, while near-infrared observations help separate water from land, distinguish burned from unburned vegetation, and identify areas where environmental conditions have changed significantly.
The high spatial resolution of the MultiScape100 enables responders to detect smaller-scale impacts that may be missed by lower-resolution systems, supporting more targeted response activities.
Output:
Near real-time disaster maps that provide a common operational picture, with flood extent, wildfire perimeters, and impacted zones identified within 24 hours, and improved change detection accuracy compared to RGB-only imagery.
Phase 3: Damage assessment and prioritisation
What you monitor:
- Burn severity
- Flood damage
- Infrastructure impacts
- Agricultural losses
- Environmental degradation
Once the immediate threat has passed, responders must quickly determine the scale and severity of damage.
Multispectral imagery allows analysts to compare pre-event and post-event observations to quantify affected areas. Vegetation health indicators can identify burn severity following wildfires—with severity classification accuracy improving by up to 25–35% compared to visual-only assessments—while flood extent maps can be used to estimate impacts on infrastructure, agriculture, and communities.
Because multispectral imagery combines spectral information with high spatial detail, it provides a practical balance between rapid assessment and actionable insight, enabling damaged infrastructure corridors to be identified at sub-5 metre resolution within 24–48 hours post-event.
Output:
Damage assessment products that support resource allocation, insurance claims, disaster declarations, and recovery planning.
Phase 4: Recovery and resilience monitoring
What you monitor:
- Vegetation regrowth
- Infrastructure reconstruction
- Coastal recovery
- Watershed rehabilitation
- Long-term environmental impacts
Recovery often continues long after a disaster disappears from the headlines. Satellite monitoring provides an objective means of measuring progress and evaluating the effectiveness of recovery efforts.
Repeated multispectral observations can track vegetation recovery following wildfires, monitor erosion in post-flood landscapes, and assess the restoration of affected ecosystems, providing consistent, objective measurements of recovery progress over weeks, months, and years. Government agencies can use this information to validate rehabilitation programmes and identify areas that require additional intervention.
Output:
Long-term recovery dashboards that support resilience planning and help communities prepare for future events.
Key multispectral indicators for disaster management
Different disasters require different analytical approaches, but several multispectral indicators consistently provide valuable information.
Vegetation Health Monitoring
NDVI (Normalized Difference Vegetation Index) and EVI (Enhanced Vegetation Index) remain among the most widely used indicators for monitoring vegetation condition. Declining values can signal drought stress, wildfire risk, or environmental degradation before impacts become visually obvious.
Burn Severity Assessment
Comparing near-infrared reflectance before and after a wildfire allows analysts to identify burned areas and estimate fire severity. These products help prioritise recovery efforts and assess environmental damage.
Flood Mapping
Water strongly absorbs near-infrared wavelengths, creating a clear contrast between flooded and non-flooded areas. This enables rapid (<24 hour) and highly accurate (>90%) delineation of flood extent, even across large regions.
Infrastructure and Surface Change Detection
Combining RGB and multispectral observations enables analysts to identify damaged transport corridors, disrupted utilities, landslides, and other surface changes that may affect response operations.
Why spatial resolution matters
Disasters rarely affect entire regions uniformly. A flood may breach a riverbank at a specific location. A wildfire may threaten a particular community. A landslide may block a critical road corridor.
These impacts often occur at a scale measured in metres rather than kilometres.
With a ground sampling distance of 4.75 metres, the MultiScape100 provides significantly greater detail than many traditional Earth observation systems. This allows analysts to identify smaller affected areas, detect emerging hazards earlier, and generate more precise response products.
For emergency managers, improved spatial resolution translates directly into better decisions, faster response times, and more efficient deployment of resources.
Conclusion
Disaster management depends on timely information. The sooner responders understand what is happening, where it is happening, and how conditions are evolving, the more effectively they can protect lives, infrastructure, and natural resources.
The MultiScape100 combines RGB imagery, red-edge observations, and near-infrared measurements in a compact, cost-effective payload designed for modern satellite constellations. By delivering high-resolution multispectral imagery at 4.75m GSD from satellites as small as 6U CubeSats, it enables organisations to monitor disasters before, during, and after they occur.
In practice, this means moving beyond simply observing an event to understanding its impact, prioritising response efforts, and supporting recovery with confidence. When every hour counts, multispectral imaging provides the actionable intelligence needed to turn data into decisions.
Author: Leon van Heerden, Marketing Manager
