Key features

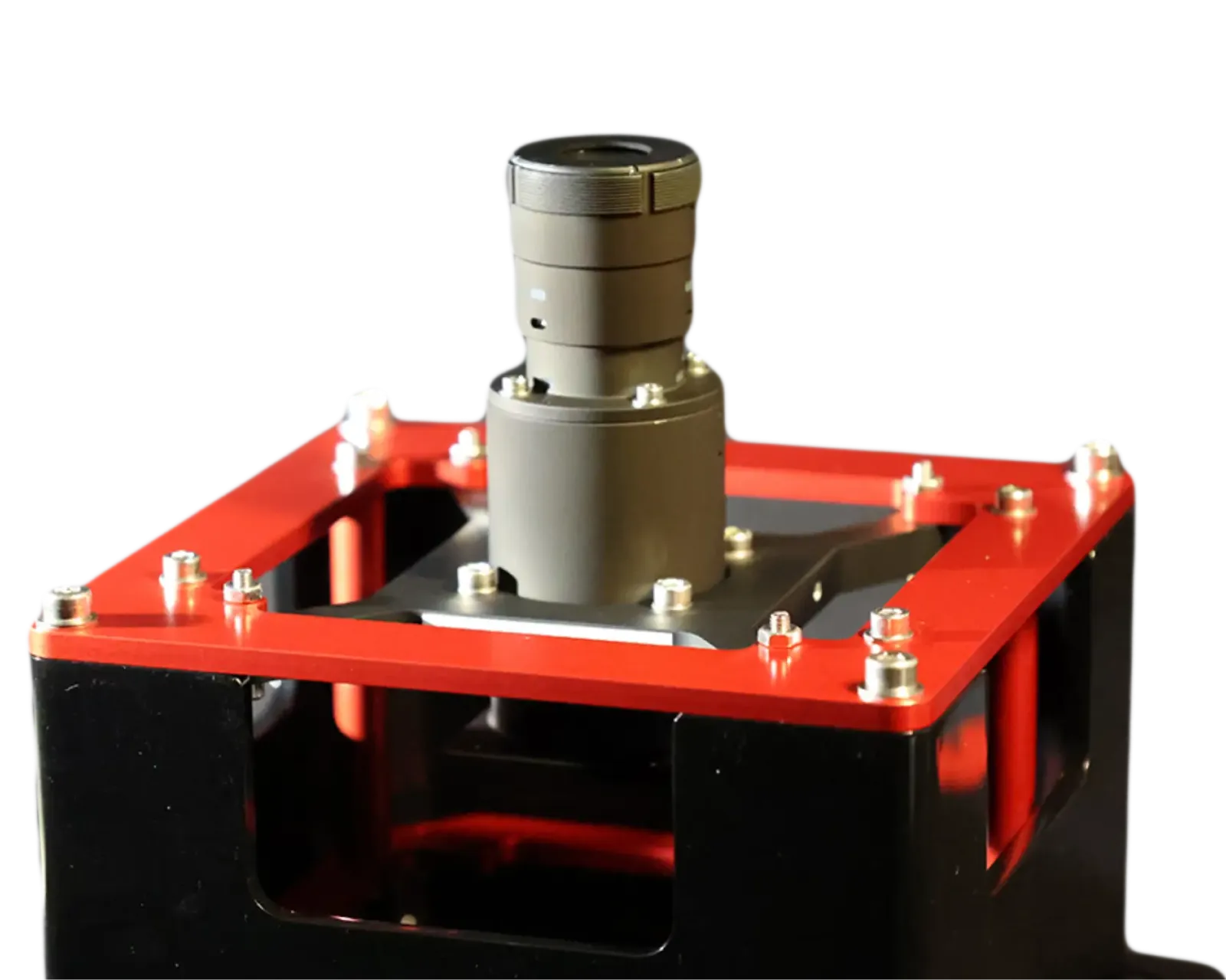

The TriScape50 is designed to fit easily in a 3U or 6U CubeSat and is built to cover large areas of our planet quickly.
30 m
GSD at 500 km
120 km
SWATH at 500 km
12.6MP
HD Resolution (MPixel)
1U
Volume
1080p30
Video
450–670
Spectral Range (nm)
Technical specifications
Detailed technical specifications for the TriScape50 imaging system.
Focal length
93.9 mm
Aperture
11.75 mm
Full field of view
13.68° x 10.28°
Configuration
Snapshot/Video
Sensor technology
CMOS global shutter
Resolution
4096 x 3072 pixels
Pixel size
5.5 µm
Pixel depth
10 bit
Spectral filter
RGB Bayer Pattern (with NIR cut-off)
Storage capacity
128 Gigabyte EDAC-protected NAND Flash
Image reduction
- Binning of RAW data
- CCSDS 122.0-B-2 Lossy/Lossless (optional)
Image preview
Thumbnailing
Control interface options
- I²C
- SPI
- RS-422
- SpaceWire (ECSS-E-ST-50-12C)
Data interface options
- LVDS
- SpaceWire (ECSS-E-ST-50-12C)
Power supply
5VDC (±5%), 1.8A
Power consumption
- Binning of RAW data
- CCSDS 122.0-B-2 Lossy/Lossless (optional)
Volume
120.5 mm x 95.88 mm x 90.17 mm
Mass
0.51 (±5%) kg
Operating temperature
-10°C to +50°C
Radiation
Fully functional to 15 kRad
