xScape50

The xScape50 delivers wide-area imaging in a compact CubeSat payload, capturing video, multispectral and hyperspectral data with effortless precision.
Download xScape50 brochure
Talk to an expert

Key features

30 m
GSD at 500 km
120 km
SWATH at 500 km
1U
Volume

The xScape50 is known for its compactness while addressing the need for wide-angle imaging with a CubeSat. This payload is ideal for capturing vast areas in video mode, multispectral and hyperspectral modes.

Choose your configuration
30 m
GSD at 500 km
120 km
SWATH at 500 km
1U
Volume

The xScape50 is known for its compactness while addressing the need for wide-angle imaging with a CubeSat. This payload is ideal for capturing vast areas in video mode, multispectral and hyperspectral modes.

Download xScape50 brochure

The xScape50 is known for its compactness while addressing the need for wide-angle imaging with a CubeSat. This payload is ideal for capturing vast areas in video mode, multispectral and hyperspectral modes.

30 m
GSD at 500 km
120 km
SWATH at 500 km
1U
Volume
Download xScape50 brochure

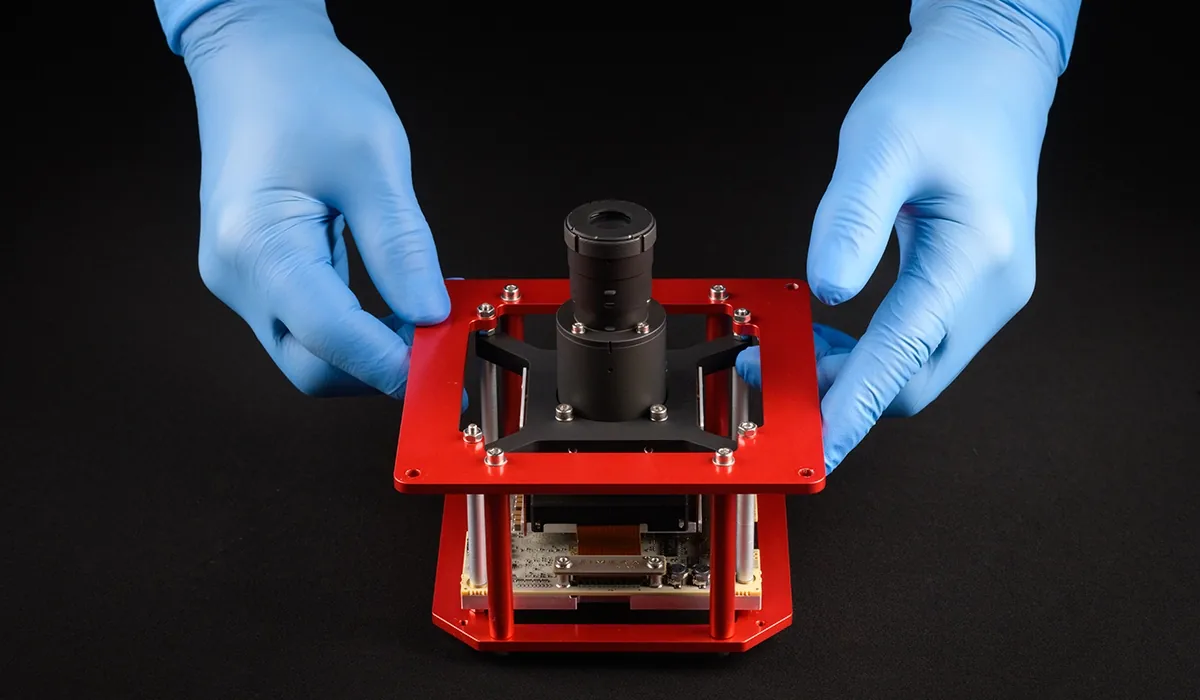

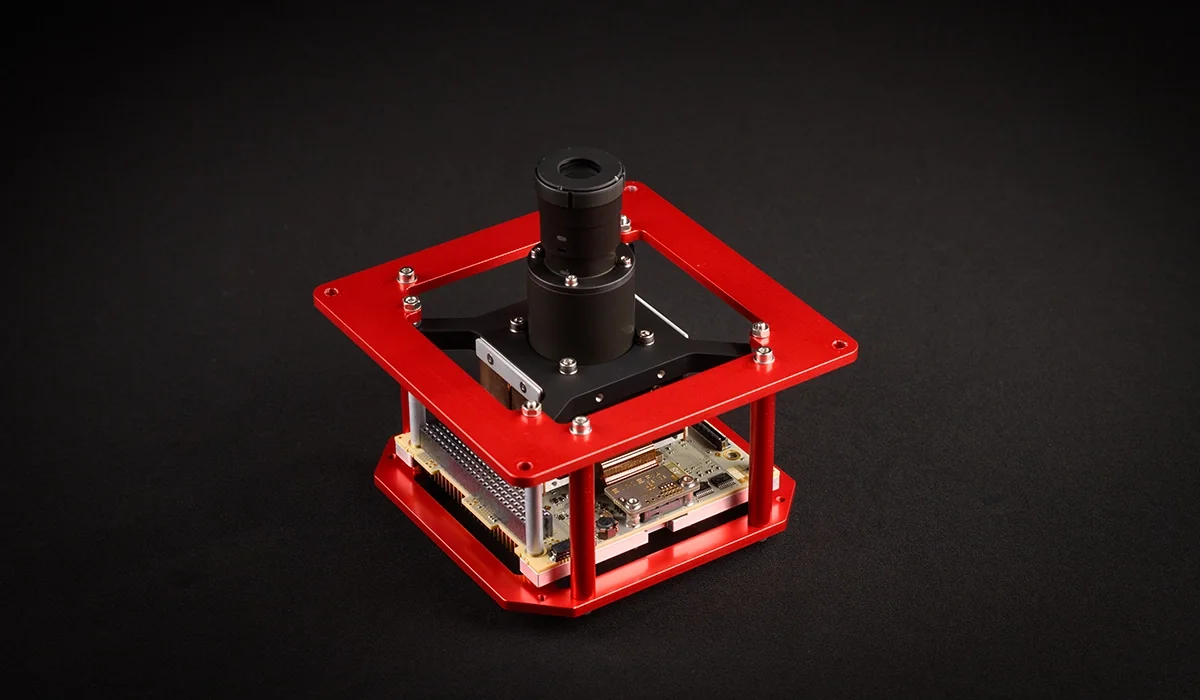

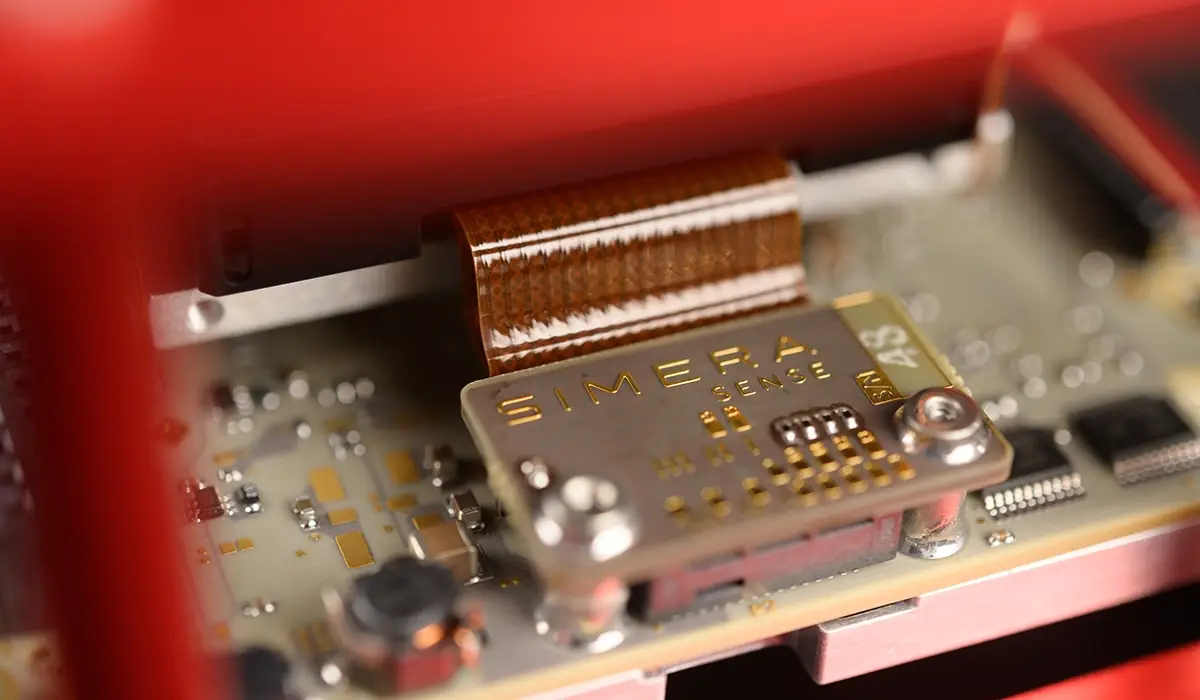

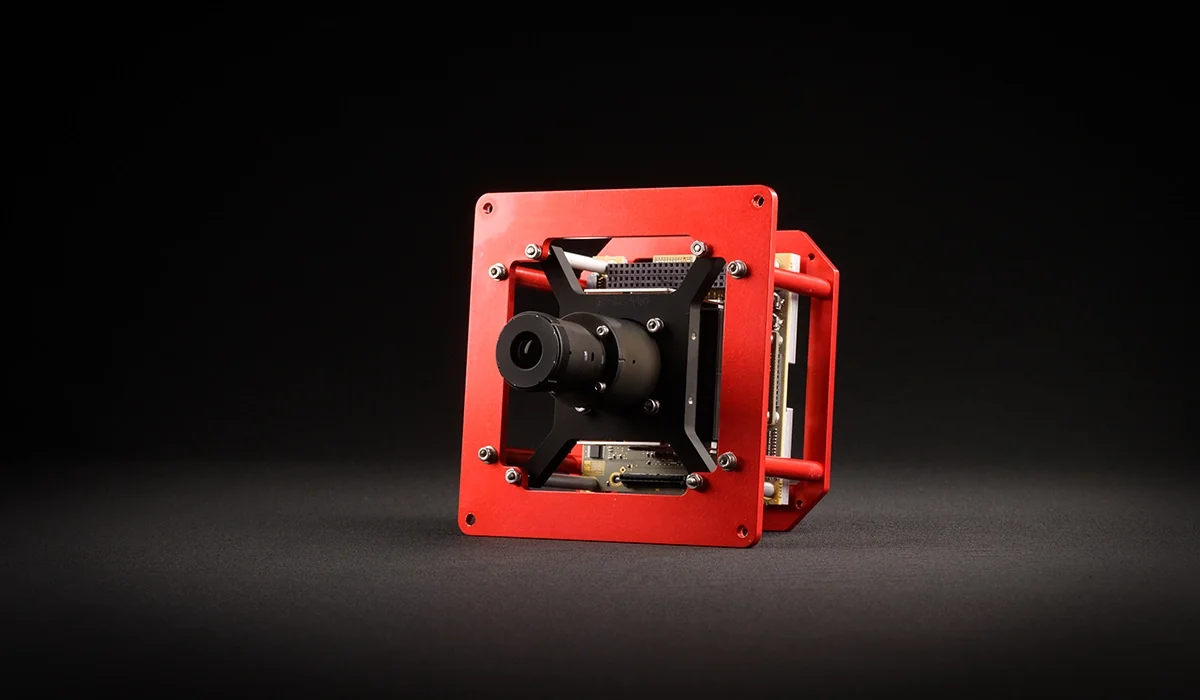

Simera Sense xScape50 optical payload
Tabuk mission image xScape50 image processing
Edgeoftheworld mission image xScape50 image processing

Available configurations

TriScape50

RGB snapshot and video

Discover TriScape50

MultiScape50

Multispectral – 8 VNIR Bands

Discover MultiScape50

HyperScape50

HyperSpectral – 32 VNIR Bands

Discover HyperScape50

One platform. Three ways to see Earth.

RGB snapshot and video

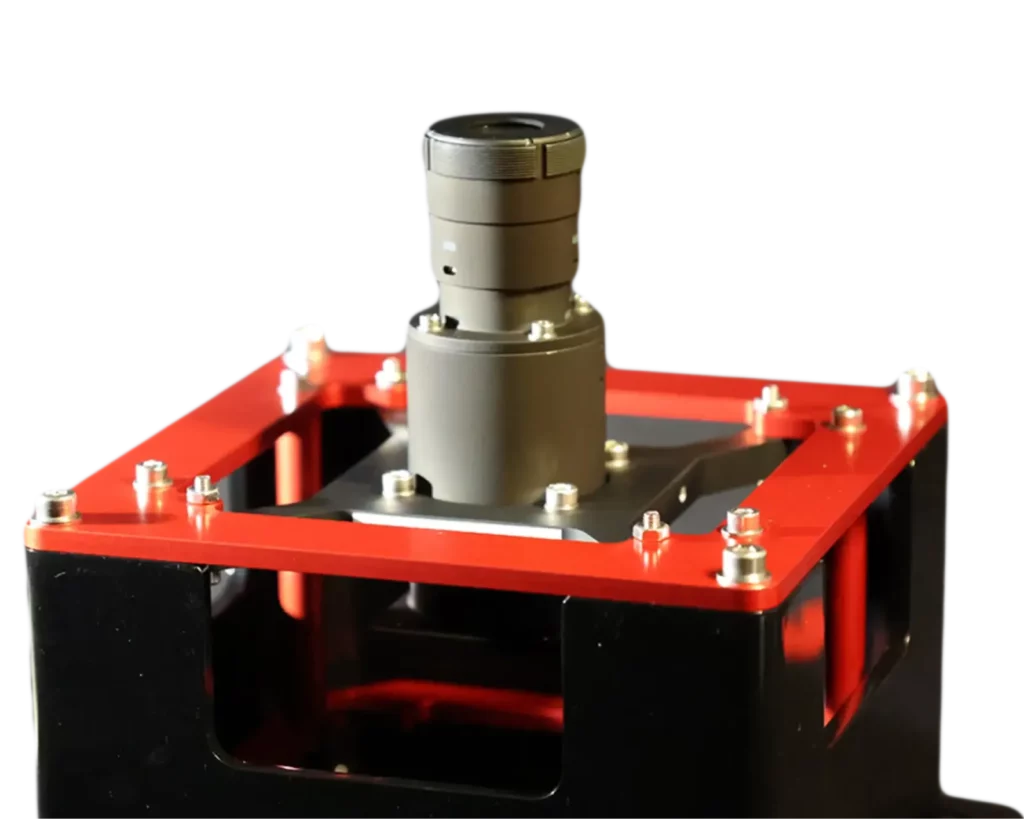

TriScape50

Real-time HD video and snapshot imaging in visible light. The easiest entry point for change detection and wide-area monitoring missions.
Discover TriScape50
Multispectral – 8 VNIR Bands

MultiScape50

8 VNIR spectral bands for environmental monitoring, vegetation indices, and daily insight across more of the spectrum.
Discover MultiScape50
Hyperspectral – 32 VNIR Bands

HyperScape50

32 VNIR bands resolving 460–860 nm. Ideal for capturing the spectral fingerprint of any location on Earth.
Discover HyperScape50
Simera Sense

What our xScape50 sees

Ready to spec the xScape50 for your mission?

Connect with our team to discuss your Earth Observation requirements.

Get in touch

Common questions about xScape50

Got more questions?
We’re here to help!
Send us your question
The xScape50 is Simera Sense’s 1U optical payload platform for CubeSat Earth observation. It is available in three spectral variants — TriScape50 (RGB), MultiScape50 (8-band multispectral), and HyperScape50 (32-band hyperspectral) — all sharing the same mechanical and electrical interface.
At a 500 km orbital altitude, the xScape50 achieves a ground sampling distance (GSD) of 30 metres with a SWATH width of 120 km, across all three spectral variants.
TriScape50, MultiScape50, and HyperScape50 are separate payload variants sharing a common 1U platform, mechanical envelope, and interface. You select the variant that matches your mission’s spectral requirements at the design stage; the shared platform means design familiarity carries across variants for future missions.
Yes. The xScape50 platform builds on flight-proven optical and mechanical heritage from Simera Sense’s broader portfolio of 50+ payloads in orbit, making it a low-risk starting point for teams flying their first Earth observation payload.

The xScape50 is a 1U platform achieving 30 m GSD and 120 km SWATH at 500 km altitude — optimised for wide-area coverage. The xScape100 is a 1.5U platform achieving 4.75 m GSD with a narrower swath, suited to missions requiring finer ground resolution. Mission requirements around revisit frequency versus resolution typically determine the choice.
